Fat API Bindings of C++ Objects into Scripting Languages

A fat API exposes nearly all of a C++ object’s public attributes and methods to a consuming environment, such as a scripting language, or web client. This can be contrasted with a conventional, or thin API, where the API is defined up front, and the C++ object provides the implementation, most of which is private to the C++ layer.

Obviously, reflection is required to expose C++ objects to a consuming layer like this – this paper explores using the Classdesc system to implement reflection of C++ objects into a JavaScript/TypeScript environment via a REST service, and also via a Node.js API module.

Introduction

Minsky [Standish] is a systems dynamics [Forrester07] simulation package, with an orientation towards economics, that has been under continual development since 2011. It is implemented in C++, and historically the user interface was implemented using the TCL/Tk toolkit [Ousterhout94], with C++ bindings provided by the EcoLab [Standish01, EcoLab] library.

From 2019–2021, the TCL/Tk layer was completely reimplemented in TypeScript [Cherny19, Goldberg22], on top of the Angular [Green13] and Electron [Kredpattanakul19] toolkits, running in the Node.js [Ihrig14] interpreter. The advantages to doing this include accessing a much larger ecosystem of 3rd party components, a much larger pool of programmers (JavaScript is consistently in the top 10 of programming languages according to the Tiobe index [Tiobe]), and potentially longer term an in-browser version of the code could be enabled via technologies such as WebASM [Haas17].

This paper reports on the subtask of exposing the Minsky’s C++ core to the TypeScript layer, allowing C++ objects to be manipulated in a seamless manner in TypeScript code. The approach is quite general, and could be readily adapted to other language binding APIs, or even without an explicit binding API by means of a REST service that can be accessed with an HTTP client implementation.

REST service

REST (REpresentational State Transfer) [Fielding00] is based on web technologies. The part of a URL after the domain, such as

http://www.somewhere.com/path/to/page

is called the URL’s pathinfo. In REST terminology, it is called an endpoint, and represents a resource. What to do with the resource is given by the HTTP verb of the request. A web browser typically performs a GET request when you type a URL into its address bar, but there are verbs covering all of the CRUD operations (create, read, update and delete):

• POST create an object at the resource location
• GET read an object at the resource location
• PUT update the object
• DELETE destroy the object

In something like an EcoLab model, or the Minsky project, there is a global static object that holds the state of the model. In the C++ code, this is accessible via a Meyer singleton pattern, ie the minsky() function. So for example, a REST GET call on /minsky/t returns the value of the current timestep of the Minsky model, and performing a PUT, with floating point data in the HTTP request body, updates the timestep to the supplied value. For convenience, the Minsky REST service ignores whether a PUT or GET is used, using the presence or absence of HTTP body data to determine whether the operation is an update or a read.

One can also map method calls into the same schema. For example /minsky/reset calls the reset method, which has no arguments. The above schema for reading or updating an attribute could be considered an example of calling an implied overloaded getter/setter method, with overload resolution determined by the presence or absence of data in the request body. Since we’re targeting the JavaScript ecosystem, it is natural to use JSON [ECMA13] to encode the parameters being passed, and the return value. Compound objects can be serialised to/from JSON using Classdesc’s existing JSON serialiser into a JSON object (delimited by braces). Calling a method with more than one parameter can be achieved by placing the JSON representation of the arguments in a JSON array, which conveniently are allowed to be of different types. So the command to export a LATEX document describing the model’s differential equation, which has signature

  void latex(const std::string& fileName,
    bool wrapLaTeXLines)

can be called through the REST service as

  /minsky/latex ["foo.tex", true]

where the first space delineates the pathinfo and request body.

Whilst JSON is used for data encoding in this example, it is perfectly possible to use alternate encodings. The RESTProcess_t¹ descriptor² object has a method:

  REST_PROCESS_BUFFER RESTProcess_t::process
    (const std::string& pathinfo,
     const REST_PROCESS_BUFFER& body);

where REST_PROCESS_BUFFER is a macro representing the ‘buffer’ concept, which defaults to json_pack_t. A buffer implements:

• REST_PROCESS_BUFFER::operator>>(T&) for deserialisation to an arbitrary type
• REST_PROCESS_BUFFER::operator<<(const T&) for serialisation of an arbitrary type
• RESTProcessType REST_PROCESS_BUFFER::type() which refers to the type of the object serialised in the buffer
• REST_PROCESS_BUFFER::Array REST_PROCESS_BUFFER::array() const returns a sequence concept object (eg std::vector or std::deque) if called on a REST_PROCESS_BUFFER that is an array, or usually an empty sequence if not.

  REST_PROCESS_BUFFER::Array::operator[](size_t) returns a REST_PROCESS_BUFFER.

The RESTProcess_t type is a map, where the keys are the endpoints of the fat API, and the values are wrappers around the C++ object, or method. These wrappers are polymorphic, with different implementations depending on whether it is an object or a method, smart pointer or container type. The interface is shown in Listing 1.

class RESTProcessBase
{
public:
virtual ~RESTProcessBase() {}
/// perform the REST operation, with \a remainder being the
/// query string and \a arguments as body text
virtual REST_PROCESS_BUFFER process(const string& remainder,
const REST_PROCESS_BUFFER& arguments)=0;
/// return signature(s) of the operations
virtual REST_PROCESS_BUFFER signature() const=0;
/// return list of subcommands to this
virtual REST_PROCESS_BUFFER list() const=0;
/// return type name of this
virtual REST_PROCESS_BUFFER type() const=0;
};

The reason REST_PROCESS_BUFFER is a macro rather than a template argument, is because RESTProcessBase is polymorphic, and C++ does not allow templated virtual functions.

The methods signature, list and type provide a modicum of introspection to allow exploration of the fat API from the calling side. signature returns an array containing the return type and types of all arguments.

Node.js API

Minsky’s C++ layer renders directly to a native window for performance reasons. Electron’s BrowserWindow class has a native window handle getter method that can be used to pass the native window to the C++ layer. The strategy described in the previous section of making the C++ implementation a REST service worked well for Windows, where the native window handles are system wide, and X-Windows system, which is distributed by design, but unfortunately failed for the MacOSX architecture. It turns out that Mac native window handles are actually pointers which are, of course, only meaningful within the same process address space.

So the C++ layer needed to be implemented as a dynamic library, and linked within the Node.js process using the Node.js API. Conceptually, this is quite simple, implementing a single Node.js API endpoint (call) that takes the pathinfo and body arguments as above. Of course, it hasn’t stayed simple – the Node.js API allows for callbacks into the JavaScript world from C++, which is important for some interactive functionality; as well as also allowing offloading of C++ processing to a separate thread, and returning the results via a JavaScript promise, which is important for not blocking the user interface during long-running backend operations.

Attributes and methods

We map C++ public attributes to an implied pair of overloaded setter/getter methods. If an argument is provided to the method, a setter is called, and the argument assigned to the attribute. For the Minsky project, JSON encoding of the attribute is performed, using the existing json_pack and json_unpack descriptors.

This is a very simple example of a method overload. However, C++ provides for overload resolution based on types as well as number of arguments. JavaScript does not provide for overloaded functions at all, but with type introspection built into the language, it is possible to write a method that can dispatch to different implementations based on types and number of arguments. However, with an impoverished set of types compared with C++, this leaves us with the problem of how to match a particular JavaScript call with a C++ method.

The approach taken in this work is to walk the C++ argument list for each overloaded C++ method (Classdesc has been able to address overloaded methods since version 3.37 [Standish19]), and add a penalty for each argument that doesn’t quite match. For instance, if the JavaScript environment passes a number with a non-zero fractional part, then an integer argument C++ will receive a small penalty, but a float or double parameter does not. If there are fewer arguments passed than the arity of the function, or no meaningful conversion is possible, then an infinite penalty is applied. Default C++ arguments are not supported as is, but a default argument can be reimplemented as an overloaded method with fewer argument calls, delegating to the method with the full number of arguments.

Finally, the method with lowest finite penalty is called, if it is unique. Otherwise, an exception is thrown back to the JavaScript environment.

Modern C++ variadic templates are used to walk the C++ type arguments to determine the penalty values. Then to call the C++ method, currying is used. The JSON arguments are converted to the relevant C++ type, starting from the last argument, currying the bound method to an n-1 argument functor, where the last argument has been fixed by the converted JSON argument. It takes one walk through the C++ argument list to generate the curry functors, then the final zero argument curried functor is called, which in turn calls the curried functors up into the final bound method. The technique works well, except that each of these curried functors need to be linked, blowing up the build time. In Build time optimisation, I describe a number of techniques to reduce the build times.

TypeScript

JavaScript, being a dynamic language, only checks numbers and types of arguments at runtime. TypeScript [Cherny19, Goldberg22] is an extension of JavaScript with type annotations that are checked at compile time. For larger more complex projects like Minsky, the TypeScript compile step is an invaluable means of eliminating logic errors.

The JavaScript interface to C++ is of the form

  call("method.name", args...);

which performs type checking at runtime. For Minsky, we created another descriptor that outputs a series of TypeScript definitions. This is not the only viable method. The REST API has sufficient introspection built in that it should be possible to build a TypeScript script that queries the REST API and emits the TypeScript definitions. However, doing it as a C++ process for the Minsky project was chosen due to greater familiarity with that environment.

For example, the Minsky class has a t double precision attribute, a complex attribute model of type Group and classifyOp method, amongst others. The custom TypeScript descriptor outputs a definition like that shown in Listing 2.

export class Minsky extends CppClass {
  model: Group;
  constructor(prefix: string){
    super(prefix);
    this.model
      =new Group(this.$prefix()+'.model');
    ...
  }
  async classifyOp(a1: string): Promise<string>
    {return this.$callMethod('classifyOp',a1);}
  async t(...args: number[]): Promise<number>
    {return this.$callMethod('t',...args);}
  ...
}

The TypeScript class CppClass provides a number of features, including the $prefix() accessor and the $callMethod() method that arranges for the named C++ method to be called on a separate thread, and returns a promise that is resolved or rejected with the return value or exception from the C++ method. Calling into C++ asynchronously in this way prevents the C++ code from blocking the GUI interface if the C++ method takes a long time to run (as some do). There is also a $callMethodSync() which calls into C++ directly on the Node.js thread, which is useful when you need to call C++ from a non-asynchronous function – such as at application startup. Note the use of the $ character in the identifier, which is a valid character in JavaScript identifiers, but not C++, so preventing any possibility of a name clash with C++ identifiers.

To use the class definition for any object, you just have to declare:

  let minsky=new Minsky("minsky");

Then you can access the time attribute via minsky.t() or set the time attribute via minsky.t(10.2). For the complex object model above, because one can call methods on it (eg minsky.model.numItems()), and in TypeScript identifiers cannot be both attributes and methods at the same time, setting and getting that object has to be done via the special $properties() method, ie minsky.model.$properties() returns a JavaScript object containing the public attributes of minsky.model, and minsky.model.$properties(object) sets the public attributes of minsky.model using the data contained in object.

Since minsky is a global object, this definition is already provided in the backend module. But for example, the attribute minsky.canvas.item is a polymorphic type with base type Item – it can be cast to the correct type in TypeScript via (eg)

  let variable=
    new VariableBase(minsky.canvas.item);

then variable gets all of the additional attributes and methods of the VariableBase subclass.

Python

A Python API descriptor already exists [Standish19]. However, it has a couple of serious downsides. The first is that it requires the boost-python library, which is not available currently for the MXE cross compiler [MXE], and may never be, as it depends on the Python library being available, the codebase of which is not friendly towards cross compilation.

The second issue is just calling the Python descriptor on the minsky global object was not sufficient to create all the types required, and that additional explicit descriptor calls were required to generate all the types. This is not insurmountable – something like this approach was done with the TypeScript descriptor, but given the full fat API was available through the RESTService descriptor, it was decided to use the existing RESTService API descriptor, and write a Python interface using the low level Python C API. That way, we should be able to load the built Python module dynamic library into an unmodified running Python interpreter on Windows. As well as that, there would be no inconsistencies between the TypeScript API and the Python API.

It was relatively straightforward, following online tutorials, to implement a ‘call’ function that takes one or two arguments, the first being the REST function name, and the second being a JSON5 string for arguments. The second step involved creating a REST_PROCESS_BUFFER object (called a PythonBuffer) that directly marshals Python objects into their C++ counterparts without going via JSON serialisation. Of course, for simplicity, and to avoid creating yet another descriptor, complex objects (structs, classes etc) will always go via JSON serialisation. Unfortunately, this exposed a weakness in the macro approach outlined above, and the explicit instantiation of templates, which meant that at link time there was a definitional conflict between REST_PROCESS_BUFFER being a JSONBuffer and a PythonBuffer. So for now, the PythonBuffer containing the arguments is serialised to JSON before being passed to the RESTProcess, and the returned JSON string used to instantiate a PythonBuffer. Another attempt at implementing a template solution of the RESTProcess descriptor is planned.

Finally, for return values, the PythonBuffer stores the value as an appropriate Python object (PyObject) for the type, whether number, string, array or so on. For objects, a custom object is returned that has the JSON string returned by the RESTProcess stored as the attribute _properties ($ is not a valid character in Python identifiers), and also new callable attributes for each method, allowing usage like:

  r=container._elem(2).method()

within Python code.

Build time optimisation

As previously alluded, extensive use of variadic templates for processing overloaded functions caused a dramatic impact on compile times for the Minsky project, which went from circa 2 minutes for the TCL/Tk version (which doesn’t support overloaded methods) to around 20 minutes for the JavaScript build. Profiling the build times indicated a massive increase in the time taken to link the ‘executable’ – in this case a dynamic library with a .node extension that Node.js loads as an ‘add on’.

One of the identified reasons for the slowdown in linking speeds is the large number of generated template helper functions to handle introspection of functional objects. The number grows as the square of the number of arguments of the method, and linking objects is O(n²), so the link time grows as the 4th power of the number of method arguments. As noted later, the link times for standard Linux linkers is not actually too bad – in the few years since this work was started, Linux linkers have improved remarkably.

In some way, the link strategy is quite stupid, as these helper functions only need to be used on one place in one object file, and so resolved at compile time. This suggested a strategy of privately declaring the variadic templates and explicitly instantiating them within just a single object file where they were used – unfortunately, the compiler still emitted symbols for each and every helper template, even if they’re not linked to from other object files, and this technique didn’t help.

So the next thing was to remove the RESTProcess .rcd definition files from the include headers, and include them in just one compilation unit, and explicitly instantiate the template within that compilation unit. This improved the build time quite significantly.

The next strategy tried was to do things the old-fashioned way. Instead of recursively defined variadic templates, explicit templates created by means of a shell script that creates explicit support functions for 0, 1, 2 etc arity functions up to some predefined maximum value (6 was found to be the maximum arity function present, with the renderWindow method being one of the biggest).

The final strategy was to reduce the maximum arity of the exposed methods. The simplest way to do this, given that one could pass a Javascript object which is packed and then unpacked into the C++ object via JSON, is to rollup several of the arguments into a compound object. In this way, the maximum arity was reduced to 4.

Finally, it turned out that the clang ecosystem had a much more performant compiler and linker for these purposes than the GCC ecosystem, and that template unrolling gave negligible benefit in the clang case.

Table 1 shows the build times for the various build time optimisations described in the text above, displayed graphically in figure 1. The optimisations were applied consecutively from top to bottom, so that the unrolled template method was applied to explicitly instantiated code, and so on.

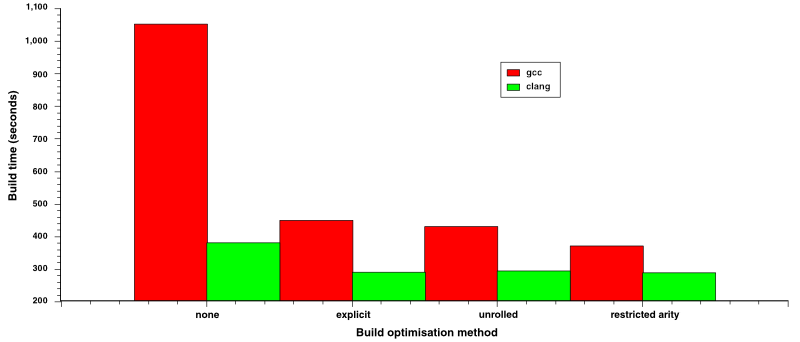

Figure 1

The final test was to try the extremely performant mold linker [Ueyama]. As per Mold’s README, adding the flag -fuse_ld=mold is sufficient to delegate the link step to mold. Link times were measured by building the target (minskyRESTService.node), removing just the target, leaving all the object files present, and timing how long it takes to build the target again.

As can be seen from table 2, for Linux builds, the linking time is inconsequential, well within noise, so even though Mold is blazingly fast, there is no particular advantage for this project. What isn’t inconsequential is the link time for generating Windows versions of the Node.js addon, which takes over 13 minutes. Just quite why the linker is so slow for Windows is unclear, however a neat trick discovered whilst doing this benchmarking is to symbolically link the LLVM linker ld.lld to the MXE linker x86_64-w64-mingw32.shared-ld. It works just as well, and only takes around 4 seconds.

Methods

Build times were recorded using the inbuilt time command, running on a quad-core Intel(R) Core(TM) i5-1135G7, at 3.8GHz, with a Samsung 970 EVO 500GB NVMe M.2 SSD. The operating system was OpenSUSE Leap 15.5, and the compilers used: GCC 13.2.1 and Clang 15.0.7.

The codebase used was Minsky 3.3.2³, except for the ‘none’ strategy above.

In explicitly instantiating the templates that define the descriptor, it is not feasible to put the code change behind a feature flag. Going back to the earlier version of the code will not be comparing apples with apples, as about a year’s worth of development has occurred since that change. So the particular optimisations were backed out from the 3.3.2 codebase: the explicit instantiations removed (they were implemented in a macro, so this was easy), then the inlined descriptor definitions included back in the header files. The code changes were committed to the branch compile-optimisations-undone⁴.

Particular optimisation feature flags can be turned on via Makefile flags, as shown in table 3. The command was run after an initial make -j9 to ensure all prerequisites were built, to avoid including the prerequisites’ build time. One can measure the overhead time required for make to start up via make -n, which proved to be about 1.3 seconds, so well within experimental noise.

Conclusion

The RESTService API descriptor provides a scripting-language-independent fat API interface to C++ code. Method arguments and return values can be marshaled using a custom native type ‘buffer’ object, or using JSON5 encoding with the preexisting Classdesc json descriptor. In practice, JSON5 encoding tends to be sufficiently performant. Both a Javascript and Python bindings were generated automatically for the Minsky systems dynamics simulator, and furthermore, TypeScript binding were generated automatically though a custom descriptor, leading to easier-to-read scripting code, and relatively more type-safe use in Minsky’s front end code.

Using the RESTService descriptor comes at additional build cost, compared with the original TCL bindings used for the EcoLab package, which is ameliorated via a number of C++ coding techniques, the use of the Clang toolchain over the GCC one, and the use of modern Linux linkers.

References

[Cherny19] Boris Cherny. Programming TypeScript: making your JavaScript applications scale. O’Reilly, 2019.

[ECMA13] ECMA. ‘The JSON data interchange format. Technical Report ECMA-404’, ECMA International, 2013. https://ecma-international.org/publications-and-standards/standards/ecma-404/ accessed March 2024.

[EcoLab] EcoLab. https://ecolab.sourceforge.net accessed March 2024.

[Fielding00] Roy Thomas Fielding. Architectural styles and the design of network-based software architectures. PhD thesis, University of California, Irvine, 2000.

[Forrester07] Jay W Forrester. ‘System dynamics|a personal view of the first fifty years’ System Dynamics Review: The Journal of the System Dynamics Society, 23(2-3):345–358, 2007.

[Goldberg22] Josh Goldberg. Learning TypeScript. O’Reilly, 2022.

[Green13] Brad Green and Shyam Seshadri. AngularJS. O’Reilly, 2013.

[Haas17] Andreas Haas, Andreas Rossberg, Derek L Schu, Ben L Titzer, Michael Holman, Dan Gohman, Luke Wagner, Alon Zakai, and JF Bastien. ‘Bringing the web up to speed with WebAssembly’. In Proceedings of the 38th ACM SIGPLAN Conference on Programming Language Design and Implementation, pages 185–200, 2017.

[Ihrig14] Colin J Ihrig. Pro Node.js for developers. Apress, 2014.

[Kredpattanakul19] Kitti Kredpattanakul and Yachai Limpiyakorn. ‘Transforming JavaScript-based web application to cross-platform desktop with Electron’. In Information Science and Applications 2018: ICISA 2018, pages 571–579. Springer, 2019.

[Madina01] Duraid Madina and Russell K. Standish. ‘A system for reflection in C++’. In Proceedings of AUUG2001: Always on and Everywhere, page 207. Australian Unix Users Group, 2001.

[MXE] MXE (M cross environment). https://mxe.cc/, accessed March 2024.

[Ousterhout94] J. K. Ousterhout. TCL and the Tk Toolkit. Addison-Wesley, 1994.

[Standish] Russell K. Standish and Steven L. Keen. Minsky. https://sourceforge.net/projects/minsky/, accessed March 2024.

[Standish01] Russell K. Standish. Ecolab4. Complexity International, 8, 2001.

[Standish19] Russell K. Standish. ‘C++ reflection for Python binding’ in Overload, 27(152):11–18, 2019, available at https://accu.org/journals/overload/27/152/standish_2682/.

[Tiobe] Tiobe index. https://www.tiobe.com/tiobe-index/, accessed March 2024.

[Ueyama] Rui Ueyama. 'Mold: A modern linker.' https://github.com/rui314/mold accessed March 2024.

Footnotes

1. Released in Classdesc 3.43, available from https://classdesc.sourceforge.net, or https://github.com/highperformancecoder/classdesc.
2. In the Classdesc reflection system [Madina01], a descriptor is an overloaded set of function definitions that is mostly automatically generated by the Classdesc processor for each type used in the program.
3. Available from https://minsky.sourceforge.net, or https://github.com/highperformancecoder/minsky
4. compile-optimisations-undone branch, available from https://github.com/highperformancecoder/minsky

Russell K. Standish Russell gained a PhD in Theoretical Physics, and has had a long career in computational science and high performance computing. Currently, he operates a consultancy specialising in computational science and HPC, with a range of clients from academia and the private sector.
